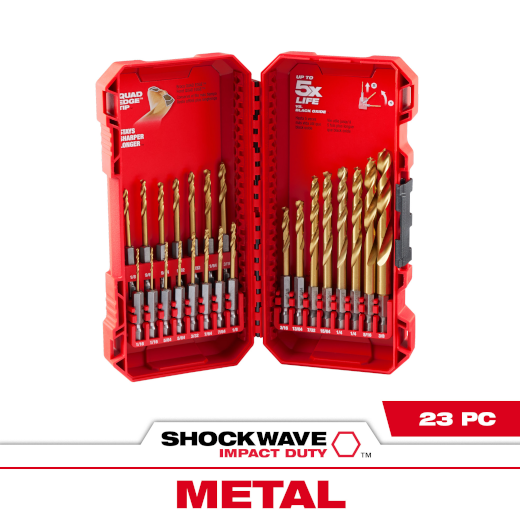

Drill Bit Set, Shockwave Impact (23 PCS.)

A tough, impact-rated drill bit set engineered for fast starts, clean holes, and long life under heavy use.

Product Description

The Milwaukee SHOCKWAVE™ 23-piece Impact Duty Red Helix drill bit set is built for technicians who demand fast, clean drilling with bits that hold up to impact driving. Designed with Milwaukee’s signature Red Helix variable-helix geometry, these bits start clean, stay cooler, clear chips fast, and resist breakage better than standard high-speed steel.

A 135° split-point tip prevents walking and requires less pressure to start the hole — a huge advantage when working on steel, aluminum, equipment housings, brackets, or installs in tight field conditions. Each bit features a 1/4" quick-change hex shank for use with impact drivers, drill chucks, and PACKOUT™-compatible bit holders.

TiN-coated high-speed steel adds strength, heat resistance, and durability, making this an excellent all-purpose set for plastic, steel, and wood. Packaged in a rugged PACKOUT™ case, this is a must-have upgrade for any field technician’s kit.

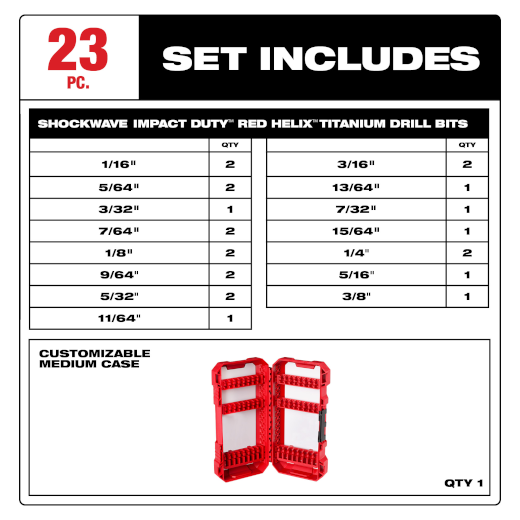

What’s Included (23 Pieces)

Fractional-Inch Drill Bit Sizes:

• 1/16"

• 5/64"

• 3/32"

• 7/64"

• 1/8"

• 9/64"

• 5/32"

• 11/64"

• 3/16"

• 13/64"

• 7/32"

• 15/64"

• 1/4"

• 5/16"

• 3/8"

What It’s Great For

• Drilling into steel, plastic, wood, and general materials

• Impact driver drilling where standard bits fail

• Field installs, equipment mounting, brackets, and fabrication

• Fast hole starts with reduced walking

• Technicians who need a compact set that performs under torque

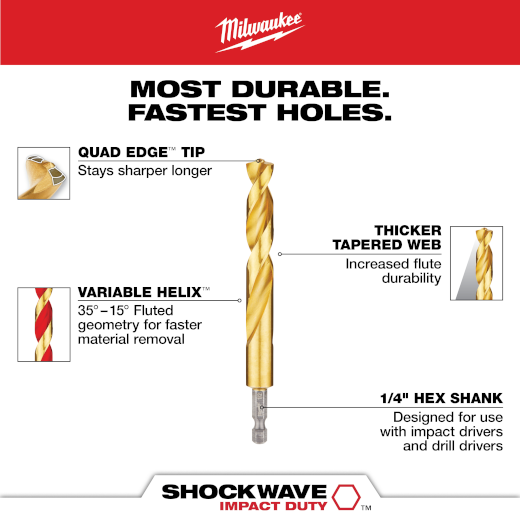

Key Features

• Impact-rated drill bits for high-torque applications

• Red Helix variable-helix design improves chip removal and reduces heat

• 135° split-point tip for fast, smooth starts with no walking

• TiN coating improves wear resistance and heat protection

• High Speed Steel (HSS) absorbs shock and vibration better than cobalt or carbide

• 1/4" quick-change hex shank fits all standard impact drivers

• Right-hand cutting direction

• 2-flute spiral design for efficient chip evacuation

• Includes PACKOUT™ case

• Manufacturer Part Number: 48-89-4631

• Country of Origin: China (subject to change)

Specifications

• Number of Bits: 23

• Smallest Size: 1/16"

• Largest Size: 3/8"

• Shank Type: 1/4" Hex

• Cutting Direction: Right-hand

• Impact Rated: Yes

• Material: HSS with TiN coating

• Series: SHOCKWAVE™ Red Helix

• Point Angle: 135° Split Point

• Helix Angle: 15°–35°

Why Techs Love It

Fast starts, long life, and impact-ready durability. This set drills cleaner and cooler, resists breaking, and handles real field wear and tear — exactly what technicians need when the job doesn’t allow for mistakes.
